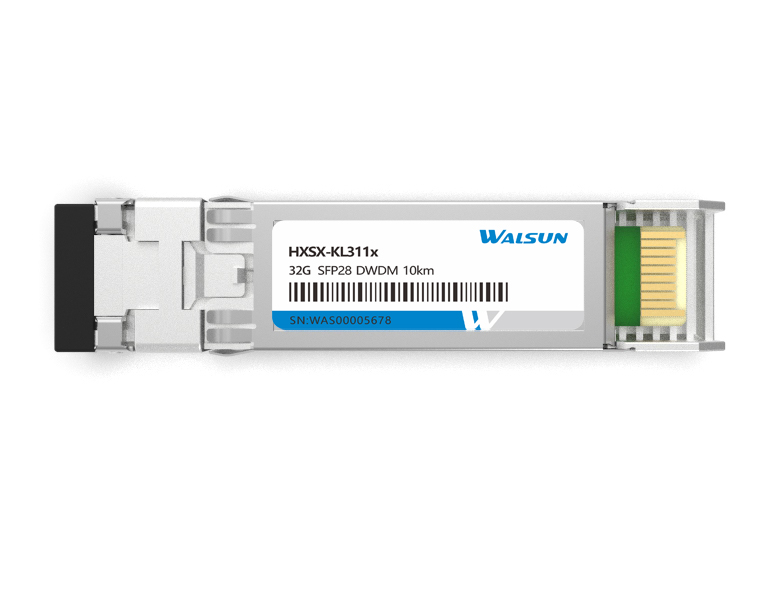

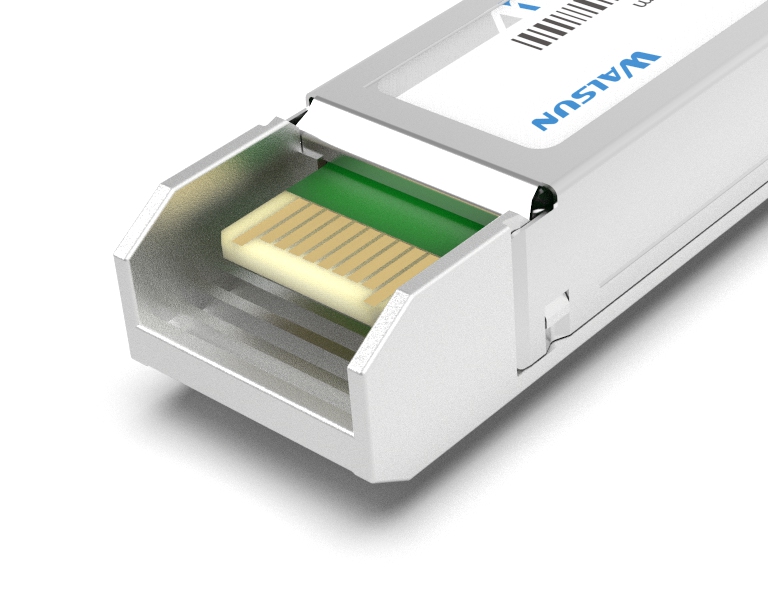

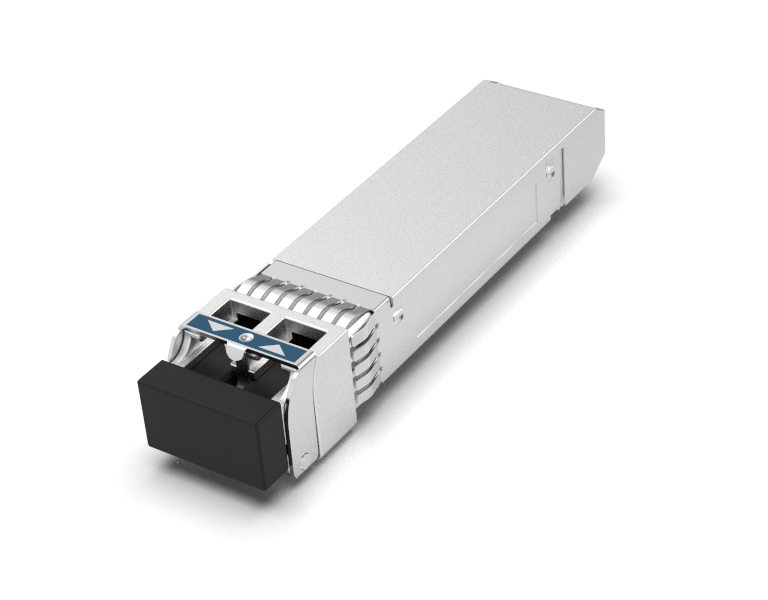

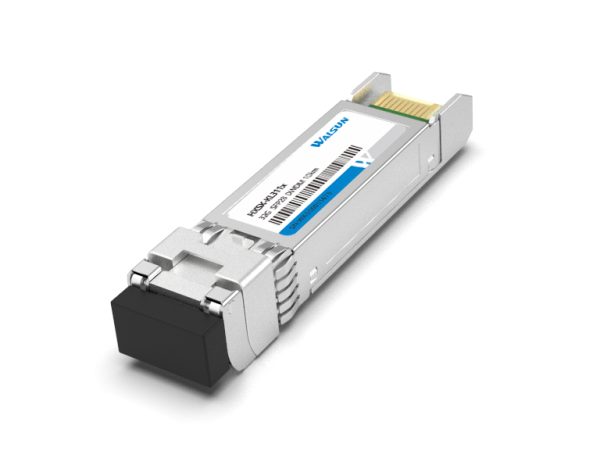

32GFC SFP28 DWDM 10km

  • Up to 28.05Gb/s data links
  • DWDM EML transmitter and PIN receiver
  • 100 GHz ITU channel spacing with integrated wavelength locker
  • Up to 10km on 9/125um SMF
  • Hot-pluggable SFP28 footprint
  • Support Digital Monitoring interface
  • Duplex LC/UPC type pluggable optical interface
  • RoHS-10 compliant and lead-free
  • With CDR function
  • Single +3.3V power supply
  • Compliant with SFF+MSA and SFF-8472
  • Metal enclosure, for lower EMI
  • Meet ESD requirements, resist 8KV direct contact voltage
  • Case operating temperature Commercial: 0 ~ +70 oC Extended: -10 ~ +80 oC Industrial: -40 ~ +85 oC
产品分类： ,

服务承诺  30天免费退货，3年免费更换，终身售后技术支持，备件先行

咨询报价
在线留言
  Brand Walsun   Optcore Part Number SFP-32G-LR-DWDM
  Form Factor SFP28   Data Rate 28.05 Gb/s
  Wavelength 1310 nm   Fiber Type SMF
  Max Distance 10 km   Optical Components DFB/PIN
  Transmitter Power -7.0 ~ -2.0 dBm   Extinction ratio > 4.0 dB
  Receiver Sensitivity < -11.6 dBm   Receiver Overload > 2.0 dBm
  Connector LC Duplex   Digital Diagnostic Monitoring Yes
  Environment Operating: 0°C to 70°C Storage: -40°C to 85°C   Weight 0.03 kg
  Application High-speed storage area networks − Switches and hubs − Network interface cards − Mass storage systems − Host bus adapters Tri-Rate 16G/32G Fibre Channel   Compliance IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS

32GFC SFP28 CWDM 10km Transceiver HXSC-KLxx1x

32GFC SFP28 DWDM 10km Transceiver HXSD-KLxx11x
